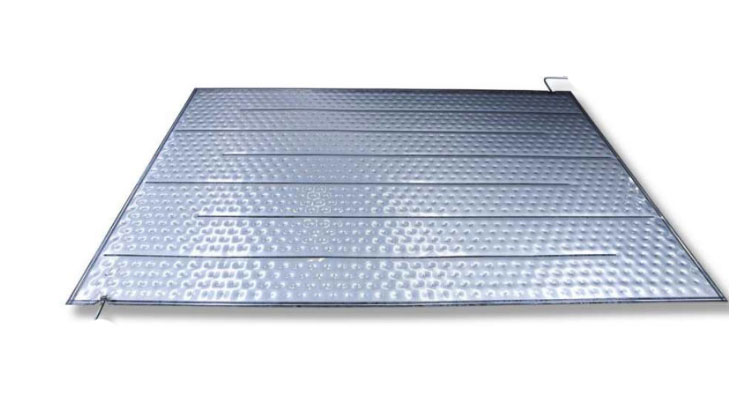

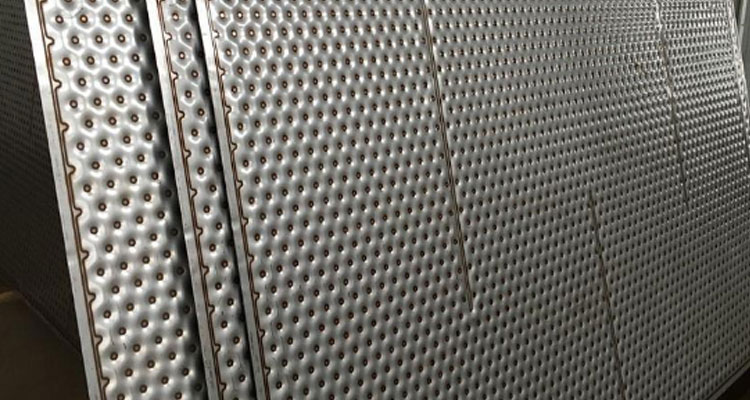

Laser Welding Plate Heat Exchanger manufacturers, producers, suppliers
- Product Details
- Company Profile
GS-HHR10015-3500 laser welding machine is mainly composed of high-power Rofin-DC035 laser, water-cooling unit, welding host, numerical control system, external light path system, two-end clamping mechanism, two-stage conveying platform, pressure feeding device, protective gas unit, etc. composition. The control system can realize integrated control of welding machine tools, lasers, water-cooling units, and protective gas units. The parameters can be adjusted conveniently, displayed in a centralized manner, and have strong anti-interference ability. The software and hardware configuration of the entire system is reasonable, the operation is stable and reliable, and its durability is long. The protection of the laser to the equipment meets the requirements for the safety of the operators' lives.
Product Description
Overall equipment overview
GS-HHR10015-3500 laser welding machine is mainly composed of high-power Rofin-DC035 laser, water-cooling unit, welding host, numerical control system, external light path system, two-end clamping mechanism, two-stage conveying platform, pressure feeding device, protective gas unit, etc. composition. The control system can realize integrated control of welding machine tools, lasers, water-cooling units, and protective gas units. The parameters can be adjusted conveniently, displayed in a centralized manner, and have strong anti-interference ability. The software and hardware configuration of the entire system is reasonable, the operation is stable and reliable, and its durability is long. The protection of the laser to the equipment meets the requirements for the safety of the operators' lives.
Drying and purification system air source
Oil-free screw air compressor machine
Specifications: Taiwan JAGUAR screw air compressor machine (EAS-05JT / 8 type)
Discharge pressure: 0.8Mpa; Displacement: 0.6m³ / min
Motor power: 4KW / 5HP; Power Supply: 380V / 50HZ
Outlet diameter: 3/4 "; reservoir pump: 80L
Gross Weight: 200KG
Dimensions: length 1050mm × width 550mm × 1160mm high
The screw compressor as PLC fully computer control center, since the transformer 24V DC power, large-screen LCD display in English: current temperature, operating pressure, total working time, clear cause of the malfunction. If the unit fails the display shows,, reason, the computer control system will react accordingly depending on the circumstances, the timely and prompt replacement of components as necessary maintenance. More emergency stop button with lock to ensure safety.
Product Name | Heat Exchanger Manufacturers Suppliers |
Laser | Rofin-DC035 |
Water cooling unit | LSJR-600BX |
External light system | Φ60 optical path |
Focusing system | F=250 |
Laser welding machine | GS-HHR10015 type |
X-axis components | Stroke 2000mm |
Y axis component | Travel 150mm |
Z axis component | Travel 150mm |








High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
