GS-BDHJ2000 Plate joint Laser Welding machine
Chat Now!
Send Inquiry- Product Details
- Company Profile
Product Advantages: 1.Highly automatic level: adopting auto preheat machine, robotic hand for loading and unloading, four-stations auto turn plate. 2.High quality: with auto pressing device, effectively reduce welding deformation, highly improve the production efficiency and quality. 3.Highly integration: integrated the auto preheat machine, melding main machine and unloading conveyor together. 4.Without space limitation, could weld small part and the parts of close interval. 5.Non-contact welding, greatly reduce the deformation and wear of the appliance. 6.Can weld various materials, and even any two kinds of various different textures and different natures can be welded well.
Product Advantages:
1.Highly automatic level: adopting auto preheat machine, robotic hand for loading and unloading, four-stations auto turn plate.
2.High quality: with auto pressing device, effectively reduce welding deformation, highly improve the production efficiency and quality.
3.Highly integration: integrated the auto preheat machine, melding main machine and unloading conveyor together.
4.Without space limitation, could weld small part and the parts of close interval.
5.Non-contact welding, greatly reduce the deformation and wear of the appliance.
6.Can weld various materials, and even any two kinds of various different textures and different natures can be welded well.
CO2 Laser Welding Technique
| welding depth(mm) | Laser Power(W) | welding line speed(m/min) |
| 2.5 | 2000-2500 | 1.6 |
| 3 | 2300-2500 | 1.5 |
| 3.5 | 2500-2800 | 1.4 |
| 4 | 2800-3000 | 1.3 |
| 4.5 | 3000-3200 | 1-1.2 |
| Remark:transmission gears can be welded twice to reduce deformation | ||
| specification(mm) | Laser Power(W) | Welding line speed(m/min) |
| Φ105-Φ180 | 800-1200 | 1.8-2.5 |
| Φ230-Φ350 | 1000-1500 | 1.5-2.0 |
| >Φ350 | 1300-1700 | 1.2-1.8 |
| Note:For diamond saw blade welding,defocusing amount is generally negative defocus 0.5mm-1mm or so,for one side welding laser power can be increase into 2000w for welding,welding depth can be up to 2--4mm;Welding protective gas is generally ordinary argon or Nitrogen gas(Ar N2),blowing gas is commonly 8 L/min. | ||
Specifications:
Products for the T type structure, applicable to the board with a width of 1500MM, the host travel 3500MM, the maximum moving speed of 10 m/min, the main operating speed of the machine tool for m/min 0.5-12 adjustable.
| Model | GS-BDHJ2000 |
| structure | T type |
| Board width | 1500 mm |
| host travel | 3500 mm |
| Maximum moving speed | 10 m/min |
| speed of the machine tool | 0.5-12 m/min |
1, Laser welding system Rofin high power laser system and the laser cutting path etc.
2, SIEMENS SIMOTION motion control system.
3, Monitoring system

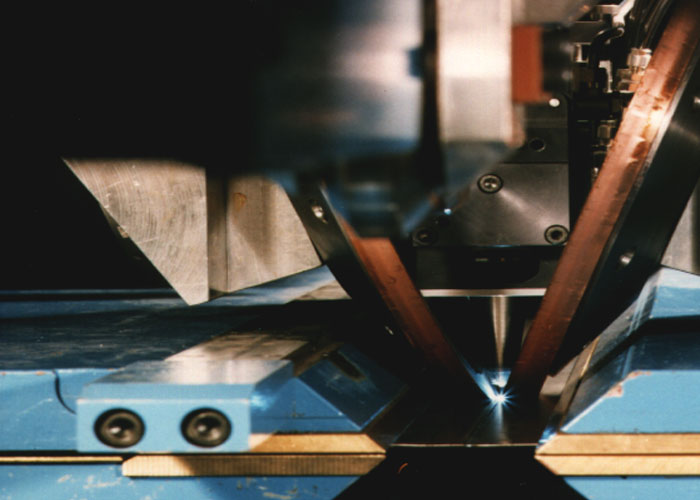

upper and lower guide wheel work photos
.jpg)
Traitement thermique avant et apres le soudage
.jpg)
The company's laser technology team
1.Wuhan system company has more than 30 technical team
2.Group companies in Shenzhen, Nanjing, Suzhou, Wuhan, Beijing, Shenyang, Tianjin, Guangzhou, eight laser specialized companies, more than 3,000 professionals engaged in laser processing of engineering and technical personnel
3.The company has accumulated rich experience and database technology, to complete a lot of special laser processing
